 YAMAHA贴片机配件 > 飞达/飞达配件 > KLJ-MC181-00 雅马哈电动送料器飞达ZS8MM手柄/把手
  • 产品编号:112215584616
  • 产品名称:KLJ-MC181-00 雅马哈电动送料器飞达ZS8MM手柄/把手
  • 规  格:KLJ-MC181-00
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:

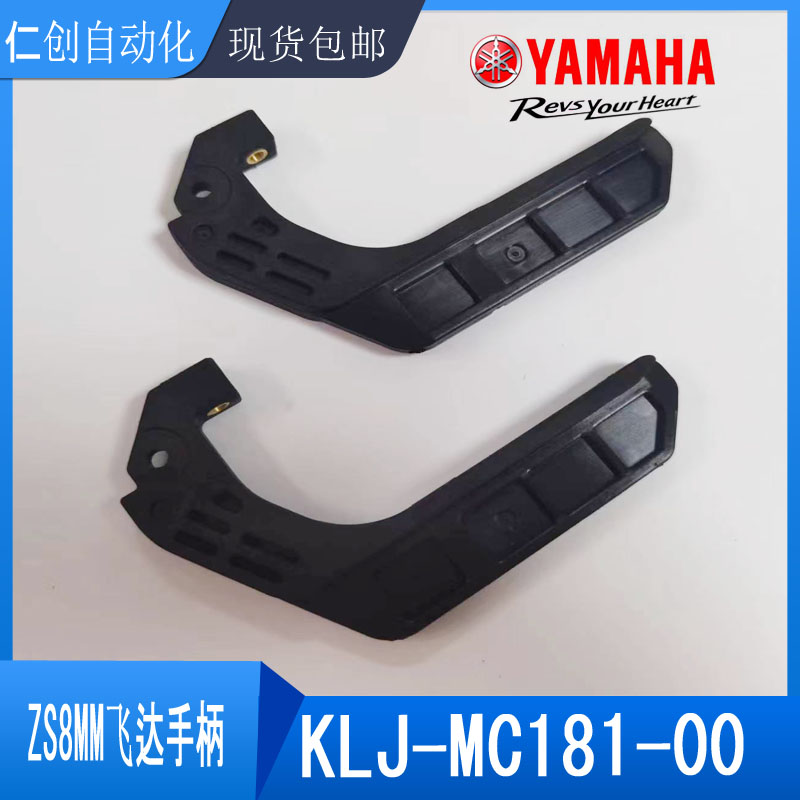

  • KLJ-MC181-00 雅马哈电动送料器飞达ZS8MM手柄/把手YAMAHA ZS8MM FEEDER

    NO Parts_No. Parts_Name Q_ty Remarks Change Compati

    1 KLJ-MC10Y-00 SCREW,PAN HEAD 1
    2 KHJ-MC104-00 RAIL,UNDER 1
    3 KHJ-MC10F-00 SCREW,FLAT HEAD 2
    4 KLJ-MC10C-00 SEAL,MAIN LABEL 1 <Note-1>
    5 KLJ-MC141-00 TAPE GUIDE 1
    6 KHJ-MC144-00 LEVER, TAPE GUIDE R 1
    7 KLJ-MC145-00 LEVER,TAPE GUIDE F 1
    8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
    9 KHJ-MC147-02 SPRING,TAPE GUIDE F 1
    10 KLJ-MC14Y-00 PLATE,STOPPER 1
    11 KLJ-MC1H1-00 COLLOR,STOPPER R 1
    12 91312-03006 BOLT HEX.SOCKET HEAD 2
    13 KHJ-MC15A-00 SHAFT 112 2
    14 KLJ-MC162-00 COVER,TOP TAPE BOX 1
    15 KLJ-MC163-00 COVER,TAIL 1
    16 KHJ-MC16V-02 P/O LEVER ASSY. 1
    17 KHJ-MC16B-00 SHAFT,P/O LEVER 2 1
    18 KHJ-MC16E-00 SPRING,P/O LEVER 1
    19 KLJ-MC1F2-00 WAVE WASHER T.C. 1
    20 90990-09J008 SCREW,FLAT HEAD 7
    21 KLJ-MC181-00 HANDLE 1
    22 91317-03016 BOLT HEX.SOCKET HEAD 1
    23 KHJ-MC185-00 PIN,HANDLE 1
    24 KHJ-MC1A9-00 CONNECTOR,BOARD 1
    25 90166-02JA06 SCREW,PAN HEAD 2
    26 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
    27 92A08-03306 SCREW,SET 1
    28 92A08-03303 SET SCREW M3X3 3
