 YAMAHA贴片机配件 > 板卡/相机/导轨 > KLA-M5882-000 KLA-M5838-000 YAMAHA电源板
  • 产品编号:6251543116
  • 产品名称:KLA-M5882-000 KLA-M5838-000 YAMAHA电源板
  • 规  格:KLA-M5882-000 KLA-M5838-000
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:

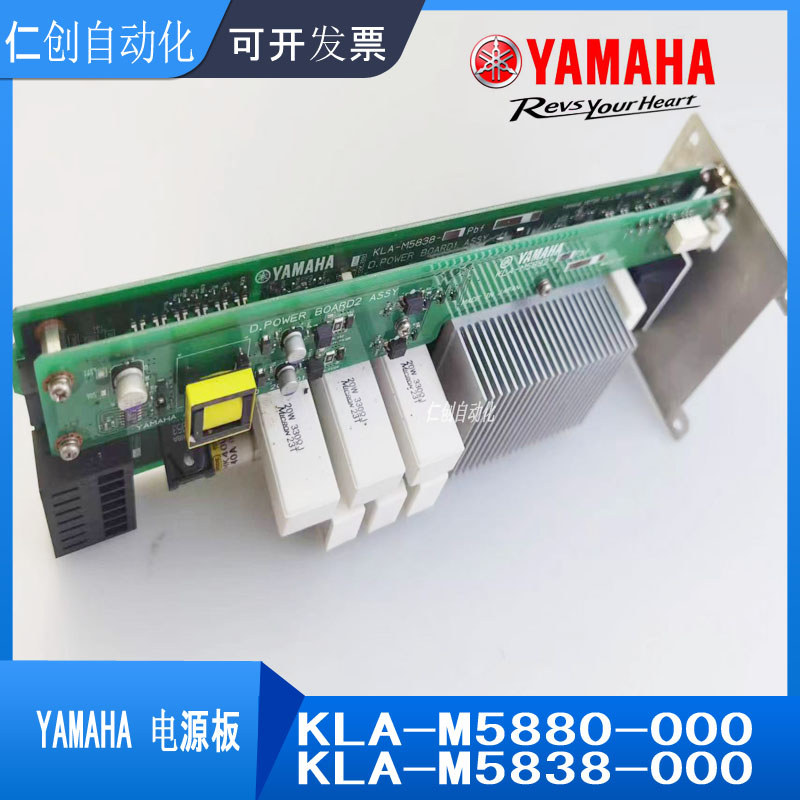

  • KLA-M5882-000 KLA-M5838-000 YAMAHA电源板D.POWER BOARD ASSY


    No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
    1 99480-04012 PIN,PARALLEL 2
    2 90189-02J126 NUT, HEXAGON 4
    3 90440-10J050 CIRCLIP 2
    4 91312-03008 BOLT HEX,SOCKET HEAD 4
    5 91312-04006 BOLT HEX,SOCKET HEAD 4
    6 91312-04008 BOLT HEX,SOCKET HEAD 13
    7 91312-05012 BOLT HEX,SOCKET HEAD 4
    8 91312-05030 BOLT HEX,SOCKET HEAD 4
    9 91312-06012 BOLT HEX,SOCKET HEAD 2
    10 91312-06020 BOLT HEX,SOCKET HEAD 4
    11 KLF-M3T15-22 STAY,SIDE L 1
    12 KLF-M3T15-32 STAY,SIDE R 1
    13 KLF-M3T68-00 BRACKET 1
    14 KLF-M3T68-10 BRACKET 1
    15 KLF-M3T70-51 COVER,FR UPPER 1
    16 KLF-M3T78-01 STAY,CLAMP L 1
    17 KLF-M3T78-11 STAY,CLAMP R 1
    18 KLF-M3T79-01 STAY,CONNECTOR 1
    19 KLF-M3T99-00 SCREW,STEP 2
    20 KLF-M3T91-00 BASE,CLAMP L 1
    21 KLF-M3T91-50 BASE,CLAMP R 1
    22 KLF-M3T92-00 LEVER,CLAMP 2
    23 KLF-M3T93-00 PIN 2
    24 KLF-M3T94-00 DOG,CLAMP L 1
    25 KLF-M3T94-50 DOG,CLAMP R 1
    26 KLF-M3T96-00 BLOCK 2
    27 KLF-M3T97-01 HOOK 2
    28 KLF-M3T98-01 PULL ACTION 2
    29 KLF-M3T9A-00 CAM FOLLOWER 2
    30 KLF-M3TB2-20 STAY,SLOPE L 1
    31 KLF-M3TB2-30 STAY,SLOPE R 1
    32 KLF-M3TJ1-00 BRKT.,HD CNT.1 1
    33 KLF-M3TJ3-10 FRAME,PIN 1
    34 KLF-M653R-00 SEN.CUT CLAMP ASSY 2
    35 91312-06025 BOLT HEX,SOCKET HEAD 8
    36 91312-08016 BOLT HEX,SOCKET HEAD 4
    37 KLF-M3TS1-00 COVER,CONNECTOR 1
    38 KLF-M3TS2-00 DUCT,CONNECTOR 1
    39 KLF-M3TS3-00 DUCT COVER,CONNECTOR 1
    40 91312-03006 91312-03006
