KHY-M7152-00 KHY-M7152-01 AME50-E2-34W YG12 YS12 AME50-E2-34W YG12/YS12 EJECTOR电磁阀 深圳仁创机电 13922849780/0755-27396659
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7103-00 PLATE,HEAD 1
2 KHY-M7117-00 STOPPER 1
3 KHY-M7118-00 PLATE,STOPPER 1
4 KHY-M7141-00 STAY,HANDLE 1
5 KHY-M71C1-00 BRACKET,RIGHT 1
6 KHY-M71C2-00 BRACKET,LEFT 1
7 KHY-M71C3-00 STAY,EJECTOR 1
8 KHY-M71C5-00 BRACKET,CABLE 1
9 KHY-M71CB-00 COVER,BASE 1
9-1 Delete (2009/12/22) MFY0106
10 KGS-M2256-00 GRIP 1
11 90990-09J007 SCREW,FLAT HEAD 5
11-1 Delete (2009/12/22) MFY0106
12 90990-41J123 COLLAR 5
13 99480-04010 PIN PARALLEL: 4X10 6
14 99480-06014 PIN,PARALLEL 4
15 $NK-3N NYLON CLIP 11
16 90990-11J003 SCREW,PAN HEAD W/W 11
17 92012-05014 BOLT BUTTON HEAD 2 M5X14
18 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
19 91312-04008 BOLT HEX.SOCKET HEAD 20 M4X8
20 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
21 KHY-M71B0-L0 VISION ATTACHMENT L 1
22 KHY-M71C7-00 STAY,LEFT 1
23 KHY-M71C8-00 COVER,CAMERA L 1
24 KHY-M66K3-00 HNS,FID1 CAMERA 1
25 KHY-M71B0-R0 VISION ATTACHMENT R 1
26 KHY-M71B1-00 HOLDER,CAMERA 2
27 KHY-M71B2-00 SATY,FID.LIGHT 2
28 KHN-M7210-01 CCD CAMERA 2
29 KHY-M7211-00 LENS FID. 2
30 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 2
31 KHY-M71C6-00 COVER,CAMERA R 1
32 KV7-M7165-00 SEAL DON'T TOUCH 2
33 90563-04J100 SPACER BOLT 2
34 $NK-2N NYLON CLIP 5
35 92902-03200 WASHER PLAIN 5
36 91312-03006 BOLT HEX.SOCKET HEAD 5 M3X6
37 91312-03016 BOLT HEX.SOCKET HEAD 4 M3X16
38 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
39 KHY-M66K3-10 HNS,FID2 CAMERA 1
40 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
41 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
42 KKE-M7133-00 SHEET, SCREEN 1 After Jan.2010 (2009/12/22) MFY0106
43 KKE-M7134-00 PLATE, SCREEN 2 After Jan.2010 (2009/12/22) MFY0106
44 KKE-M7135-00 PLATE, SCREEN 2 After Jan.2010 (2009/12/22) MFY0106
45 90990-01J040 BOLT HEX. SOCKET HEAD 4 After Jan.2010 (2009/12/22) MFY0106
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7101-00 HOUSING,HEAD 1
2 KHY-M7113-00 PLATE 2,BRG. 1
3 KHY-M7114-00 PLATE 3,BRG. 8
4 KHY-M711B-00 PLATE 4,BRG. 2
5 90990-01J040 BOLT HEX.SOCKET HEAD 20
6 98702-03006 SCREW FLAT HEAD 11
7 91317-05035 BOLT HEX.SOCKET HEAD 4 M5X35
8 KHY-M7102-00 PLATE,R MOTOR 1
9 KHY-M7125-00 BRACKET,STOPPER 2 BLACK
9-1 KHY-M7125-01 BRACKET,STOPPER 2 WHITE MF70027 SET
10 KHY-M7126-00 SHAFT 2,TENSION 2
11 KHY-M7127-00 BLOCK 1,ADJUST 1
12 KHY-M7128-00 BLOCK 2,ADJUST 1
13 KHY-M7129-00 BLOCK 3,ADJUST 2
14 KHY-M7131-00 BELT 1 2
15 KHY-M7132-00 BELT 2 2
16 KHN-M7131-00 PULLY R MOTOR 2
17 KHN-M7132-00 BLOCK1 STOPPER 2
18 KHN-M7139-00 STOPPER R 2
19 KGV-M7157-00 BLOCK2,STOPPER R 2
20 KV8-M7115-00 SHAFT 1,TENSION 6
21 90K21-038011 AC SERVO MOTOR 1
22 90K21-037512 AC SERVO MOTOR 1
23 90933-03J128 BEARING 16
24 90990-19J016 NEEDLE,PIN 2
25 99009-07800 CIRCLIP : 2
26 99480-04008 PIN,PARALLEL:4X8 2
27 $NK-3N NYLON CLIP 1
28 92902-03200 WASHER PLAIN 8
29 92902-04200 WASHER PLAIN 6
30 92A08-04304 SET SCREW M4X4 4
31 90990-11J003 SCREW,PAN HEAD W/W 1
32 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
32-1 Delete MF70027 SET
33 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
34 91312-03012 BOLT HEX.SOCKET HEAD 8 M3X12
34-1 91312-03012 BOLT HEX.SOCKET HEAD 12 M3X12 MF70027 SET
35 91312-03035 BOLT HEX.SOCKET HEAD 4 M3X35
36 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
37 91317-03010 BOLT HEX.SOCKET HEAD 8 M3X10
38 91317-04014 BOLT HEX.SOCKET HEAD 4 M4X14
39 91317-05020 BOLT HEX.SOCKET HEAD 2 M5X20
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7106-A0 HEAD SHAFT 1 ASSY. 5
2 KHY-M7106-00 BALL SPLINE 1 5
3 KHY-M7107-A0 HEAD SHAFT 2 ASSY. 5
3-1 KHY-M7106-B0 HEAD SHAFT 1B ASSY. 5 (2009/1/14) MF10029 OK
4 KHY-M7107-00 BALL SPLINE 2 5
4-1 KHY-M7106-00 BALL SPLINE 1 5 (2009/1/14) MF10029 OK
5 KHY-M7105-00 HOLDER,NOZZLE 10
6 KHY-M7108-00 COLLAR,BRG. 10
7 KHY-M7111-00 HOLDER,BEARING 10
8 KHY-M7112-00 PLATE 1,BRG. 10
9 KHY-M7115-00 BRACKET,JOINT 10
9-1 KHY-M7115-01 BRACKET,JOINT 10 (2010/1/20) MG10062 OK
10 KHY-M7116-00 SPRING,RETURN 10
11 KHY-M711A-00 PIN,POST 10
11-1 Delete (2010/1/20) MG10062 OK
12 KHY-M7121-00 PULLEY,SHAFT 10
13 KHY-M7122-00 NUT,SHAFT 10
14 KHY-M7123-00 COLLAR,SHAFT 10
15 KG7-M7137-A0 LEAF SPRING 20
16 90990-02J005 SET SCREW M3X2 20
17 90990-08J016 SCREW,PAN HEAD 40
18 90990-15J003 NUT,HEXAGON 10
19 90990-17J053 O-RING 20
20 90990-22J009 PACKING 10
21 90933-02J104 BEARING 10
22 $TSH4-M5M JOINT 10
23 $PF-M3 PLUG 10
24 91312-03006 BOLT HEX.SOCKET HEAD 20 M3X6
25 91312-03030 BOLT HEX.SOCKET HEAD 20 M3X30
26 KHY-M712S-A0 SHAFT 1,SPARE 1 SPARE
27 KHY-M711S-A0 SHAFT 1,SPARE 1 SPARE
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.

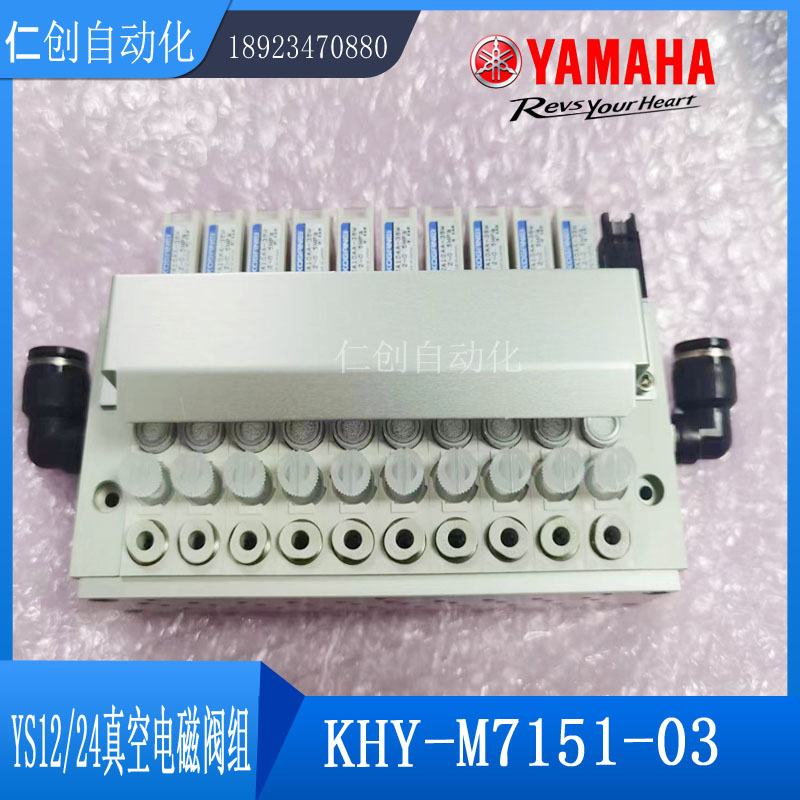

1 KHY-M7151-00 EJECTOR,RESIN 1
1-1 KHY-M7151-01 EJECTOR,RESIN 1 (2008/12/26) MEY0069 OK
2 KHY-M4592-01 VAC SENSOR BRD ASSY 1
3 KHY-M71CA-00 COVER,VAC SENSOR 1
4 $TL10-01 JOINT 2
5 90563-23J060 SPACER 4
6 91312-03005 BOLT HEX.SOCKET HEAD 6 M3X5

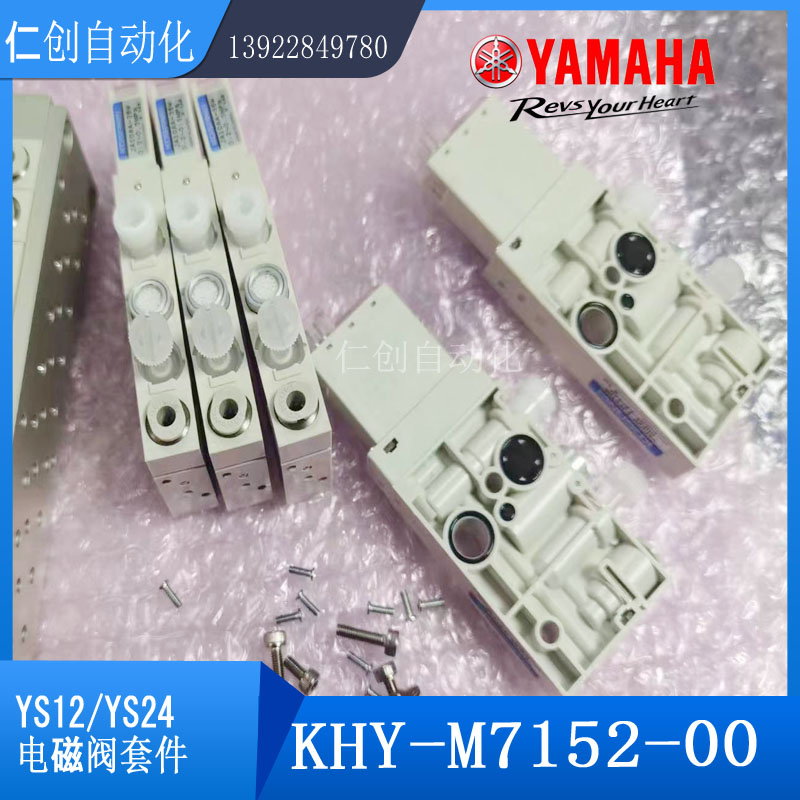

7 KHY-M7152-00 EJECTER 1
7-1 KHY-M7152-01 EJECTER 1 (2008/12/26) MEY0069 OK
8 KHY-M7153-00 VALVE 1

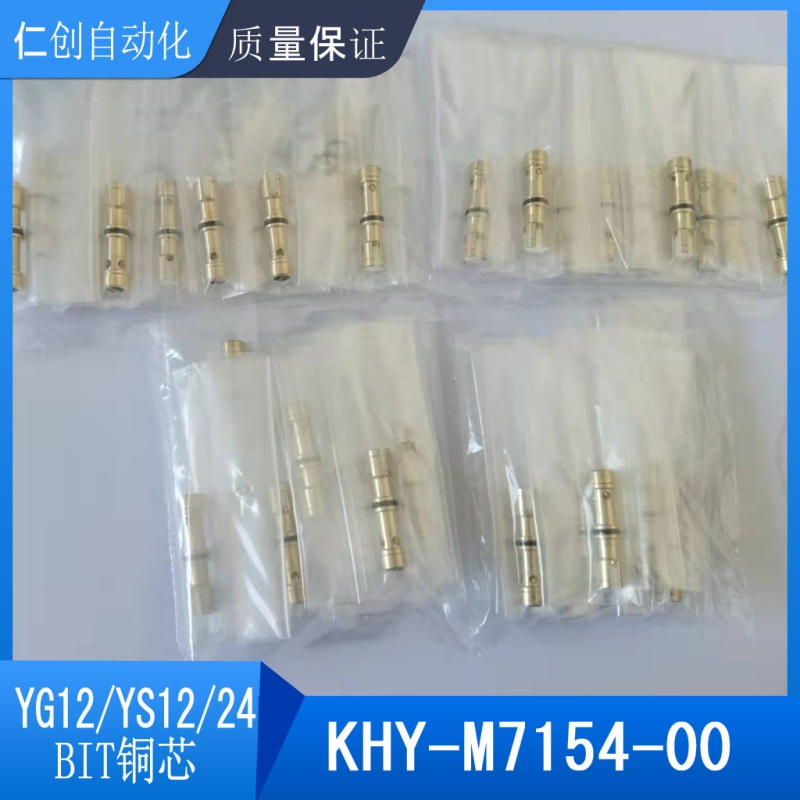

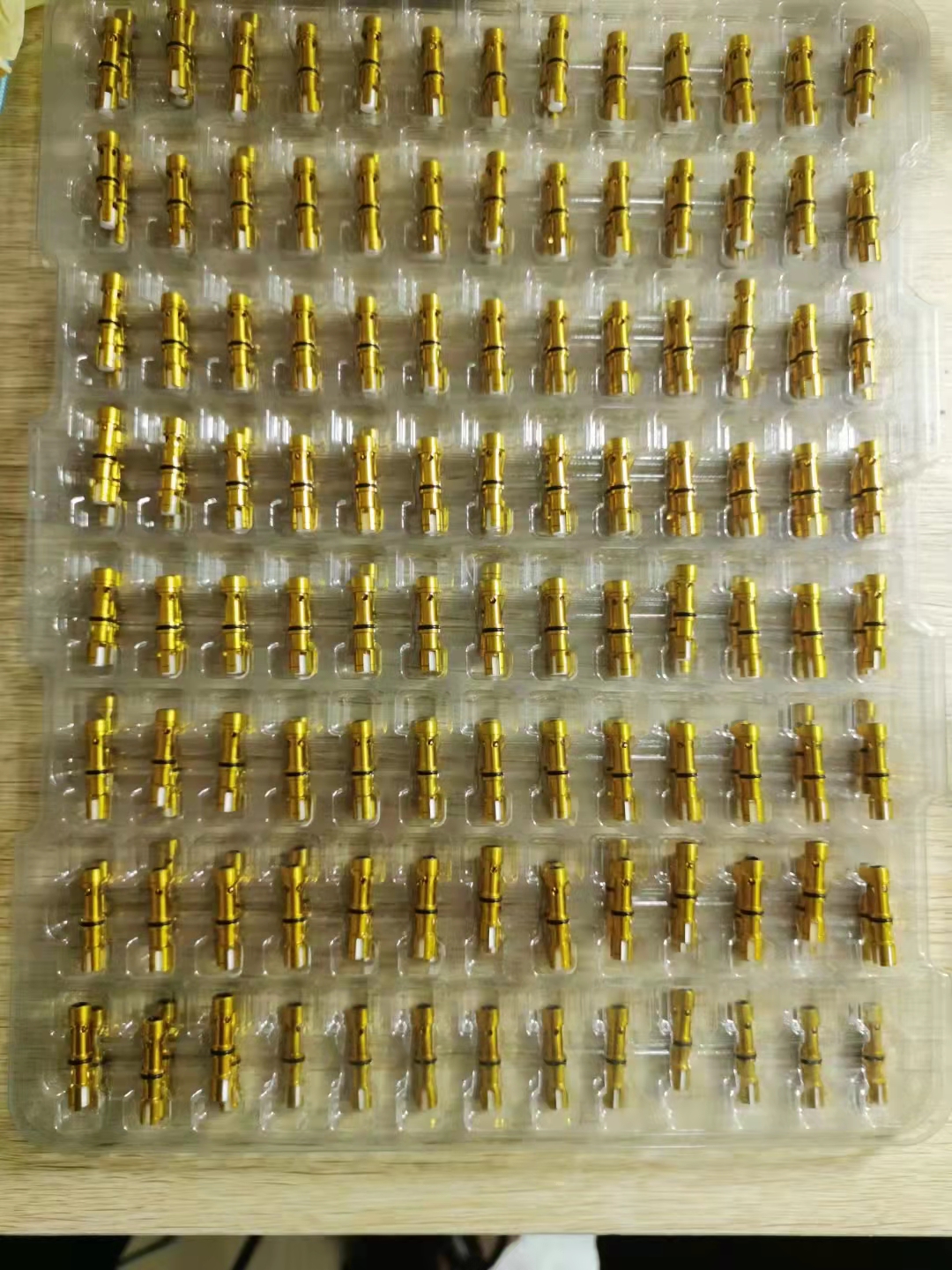

9 KHY-M7154-00 BIT 1
9-1 KHY-M7154-01 BIT 1 (2008/12/26) MEY0069 NG
10 KHY-M7155-00 FILTER CAP 1

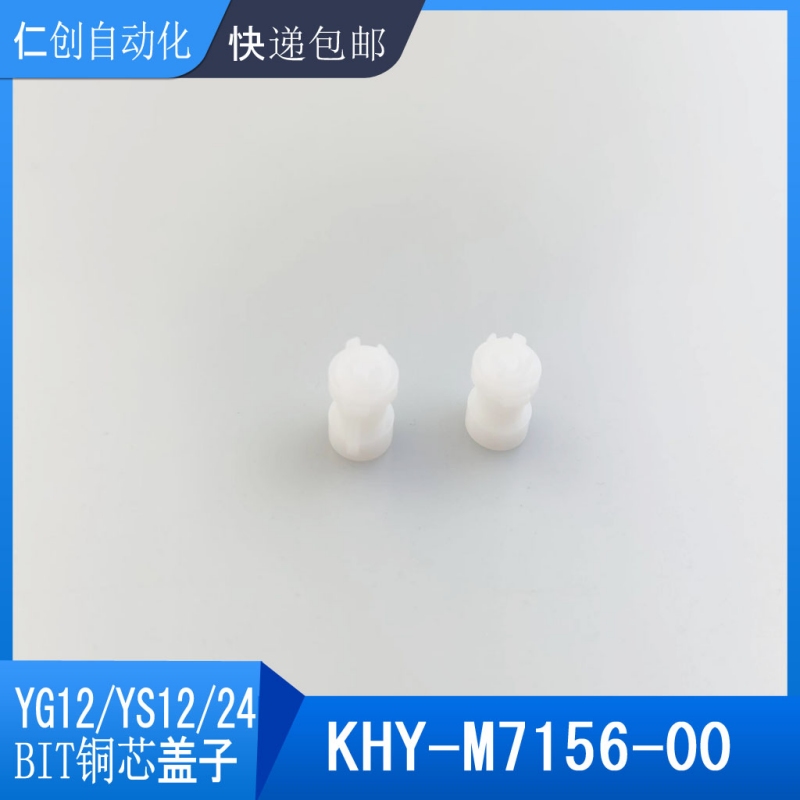

11 KHY-M7156-00 BIT CAP 1
11-1 KHY-M7156-01 BIT CAP 1 (2008/12/26) MEY0069 OK
12 K46-M8527-C0 FILTER 1
13 90990-17J010 ORING 2
14 KHY-M71G5-A0 Z UNIT ASSY. 5
15 KHY-M71G5-A5 Z UNIT ASSY. 5
16 KHY-M71G1-00 SIDE PLATE,R 1
17 KHY-M71G2-00 SIDE PLATE,L 1
18 KHY-M71G3-00 SHAFT 1 2
19 KHY-M71G6-00 PLATE,HARNESS 1
20 KHY-M71H3-00 TAPE,Z-UNIT 1
21 90990-28J078 WASHER,PLAIN 4
22 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
23 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
24 99480-04008 PIN,PARALLEL:4X8 2
25 90K41-000720 LABEL,ALERT 2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7AC0-00 SCAN CAM. ASSY 1
1-1 KKD-M78C0-00 SCAN CAM. ASSY 1 (2009/1/6) H012375 OK
2 KHY-M7554-02 OF.LIGHT BRD.ASSY. 1
3 KHY-M7905-02 OF.SV.LIGHT BRD ASSY 1
4 KV7-M7165-00 SEAL DON'T TOUCH 1
5 KHY-M7A50-00 SCAN AXIS ASSY 1
6 KHY-M7A57-00 BRACKET,DUCT 1
6-1 KHY-M7A57-01 BRACKET,DUCT 1 (2008/10/02) ME50129 OK
7 KHY-M7A58-00 COVER,SENSOR 1
7-1 KHY-M7A58-01 COVER,SENSOR 1 (2008/10/02) ME50129 OK
8 KHY-M7A65-01 PLATE,CABLE 1
9 KHY-M7A66-00 BRACKET,CONNECTOR 1
9-1 KHY-M7A66-01 BRACKET,CONNECTOR 1 (2008/10/02) ME50129 OK
10 KHY-M7A92-00 BRACKET,CONNECTOR 1
11 KHY-M7A93-00 PLATE,CLAMP 1
12 KHY-M7A94-01 CLAMP,CABLE 1
13 KHY-M7A97-00 COVER,CABLE 1
14 KHY-M66JA-03 HNS,SCAN FLEX 1
14-1 KHY-M66JA-04 HNS,SCAN FLEX 1 (2008/10/2) ME80184 OK
15 91312-03008 BOLT HEX.SOCKET HEAD 16 M3X8
16 91312-04005 BOLT HEX.SOCKET HEAD 10 M4X5
17 90990-11J003 SCREW,PAN HEAD W/W 5
18 $NK-2N NYLON CLIP 5
19 KHY-M7A13-01 DIFFUSER,MAIN 1
20 90990-08J020 SCREW,M2X5 3
21 90990-28J002 WASHER 3
22 90990-08J026 SCREW,PAN HEAD 4
23 KHY-M7A34-00 DIFFUSER,SIDE 1
24 KHY-M7A96-01 COVER,SENSOR 1
