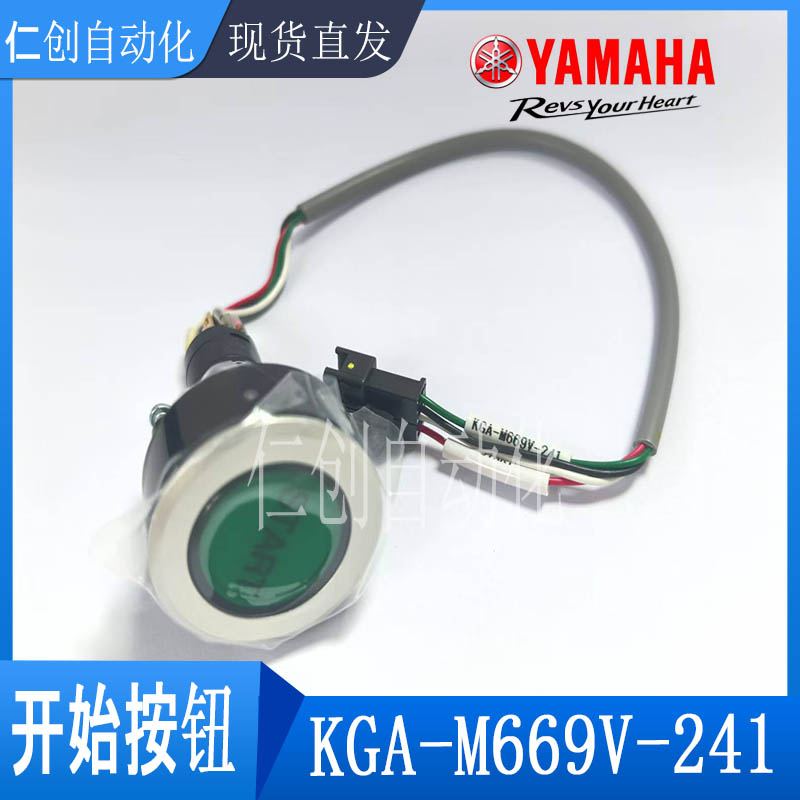

雅马哈YS12贴片机START开始按钮 KGA-M669V-241 HNS,SWITCH START
KGA-M13B5-00 MOUSE POCKET ASSY 1
10
KHY-M4899-00 LIGHT 1 ASSY (L=414) 1 1850 R.Y.G
KHY-M4899-10 LIGHT 1 ASSY (L=470) 1 1980 R.Y.G
KHY-M4899-20 LIGHT 1 ASSY (L=570) 1 2000 R.Y.G
KHY-M4899-30 LIGHT 1 ASSY (L=664) 1 2100 R.Y.G
KHY-M4899-40 LIGHT 1 ASSY (L=770) 1 2200 R.Y.G
KHY-M4899-50 LIGHT 1 ASSY (L=864) 1 2300 R.Y.G
KHY-M4899-60 LIGHT 1 ASSY (L=414) 1 1850 W.B.G
KHY-M4899-70 LIGHT 1 ASSY (L=470) 1 1980 W.B.G
KHY-M4899-80 LIGHT 1 ASSY (L=570) 1 2000 W.B.G
KHY-M4899-90 LIGHT 1 ASSY (L=664) 1 2100 W.B.G
KHY-M4899-A0 LIGHT 1 ASSY (L=770) 1 2200 W.B.G
KHY-M4899-B0 LIGHT 1 ASSY (L=864) 1 2300 W.B.G
KV7-M4887-00 LED UNIT,R-R 1 SPARE
KV7-M4887-10 LED UNIT,Y-Y 1 SPARE
KV7-M4887-20 LED UNIT,G-G 1 SPARE
KV7-M4887-30 LED UNIT,BL-BL 1 SPARE
KV7-M4887-40 LED UNIT,W-W 1 SPARE
11 KM5-M6554-10 MAIN SWITCH 1
12 KHM-M1397-00 BRACKET,FDD 3 1
13 KGK-M6680-20 HNS,USB-MEMORY 2M AS 1
14 KJJ-M4580-02 I/O CONVEYOR BOARD A 1
15
KHY-M6561-A0 POWER SUPPLY 1 ASSY 1 for YS
KJV-M6561-A0 POWER SUPPLY 1 ASSY 1 for YG
16 KHY-M6561-B0 POWER SUPPLY 1 ASSY 1
17 KHY-M4570-01 I/O HEAD BOARD ASSY 1
17-1 KHY-M4570-20 I/O HEAD BOARD ASSY 1 (2008/10/30) ME00097 NG
18 KHY-M5802-01 Z SERVO UNIT ASSY 5
18-1 KHY-M5802-02 Z SERVO UNIT ASSY 5 (2008/10/9) ME90138 OK
19 KHY-M5802-11 R SERVO UNIT ASSY 1
19-1 KHY-M5802-12 R SERVO UNIT ASSY 1 (2008/10/9) ME90138 OK
20 KHN-M6185-10 FAN MOTOR ASSY 1
21 KGA-M4187-00 FAN GUARD 119MM 8
22 KGS-M4896-01 LIGHT,ERR ASSY 1 for S.T.D
23 KHG-M4896-01 LIGHT,ERR ASSY 1 for CE
24 KGA-M669V-04 HNS,SWITCH ACTIVE 1
25 KGA-M669V-24 HNS,SWITCH START 1
26 KGA-M669V-54 HNS,SWITCH RESET 1
27
KGA-M669V-32 HNS,SWITCH STOP 1 for S.T.D
KHA-M669V-03 HNS,SWITCH STOP 1 for CE
28
KGA-M669V-42 HNS,SWITCH ERR.CLR. 1 for S.T.D
KHA-M669V-12 HNS,SWICTH ERR.CLR. 1 for CE
29 KGA-M669V-14 HNS,SWITCH READY 1
30 KGS-M6510-00 BREAKER ASSY 1
31 KHY-M6513-00 CIRCUIT PROTECTOR,1 1
31-1 KHY-M6513-01 CIRCUIT PROTECTOR,3P 1 (2008/6/19) ME60163 NG
32 KHA-M6513-00 CIRCUIT PROTECTOR,3 1
32-1 KHA-M6513-01 CIRCUIT PROTECTOR,1P 1 (2008/6/19) ME60161 NG
33 KHY-M8596-00 PRESSURE GAUGE 1
34 KHW-M8596-00 PRESSURE GAUGE 1 for YG
35 KGK-M4590-01 I/O TF BOARD ASSY 1 for S-ATS
36 KJJ-M5328-00 POWER TRANSFORMER 1
37 KJJ-M5318-10 POWER TRANSFORMER 1 for UPS
38 KGK-M5138-00 SWITCH EMG ASSY 2
39 KW7-M5126-00 SAFETY SWITCH 2
39-1 KW7-M5126-H0 SAFETY SW UNIT ASSY 2 (2009/12/1) MFX0093 OK
40 KW7-M5127-00 SAFETY SWITCH KEY 2
41 KGS-M5126-01 SCREW 2
42 KGB-M3992-00 SWITCH,SELECT 4
43 KGA-M5318-01 POWER TRANSFORMER 1 for YG S.T.D
44 KGA-M6522-20 SPARE RELAY 1
45 KGY-M4268-00 USB MEMORY 1
46 KKJ-M13B1-C0 BRKT. KEYBOARD ASSY 1 for YS24 (2009/7/23) M
