 YAMAHA贴片机配件 > 飞达/飞达配件 > KLJ-MC461-00 雅马哈ZS24MM电动飞达配件废料带盒子组装体
  • 产品编号:41106816

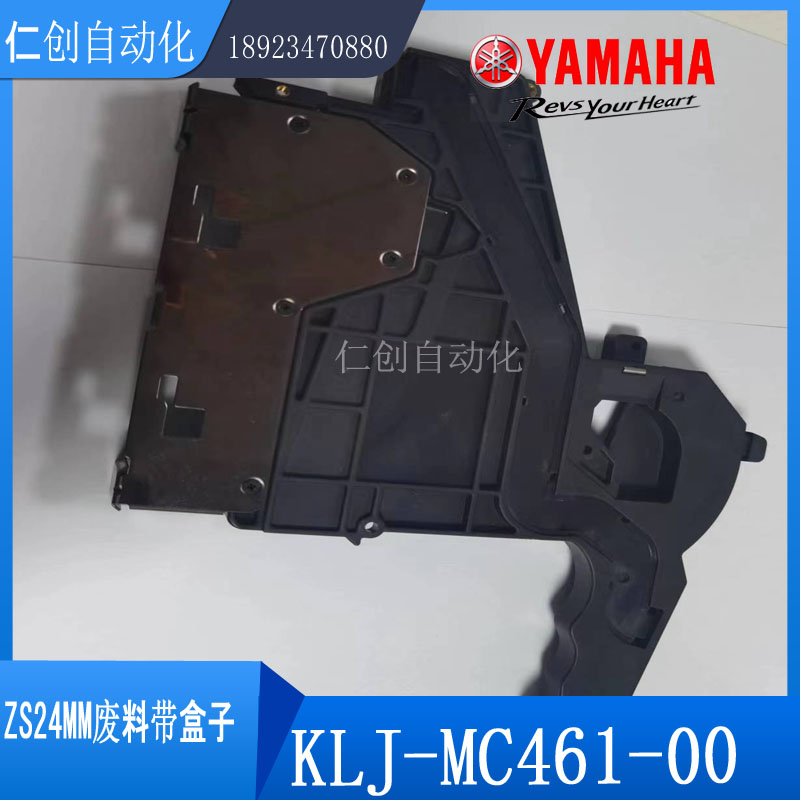

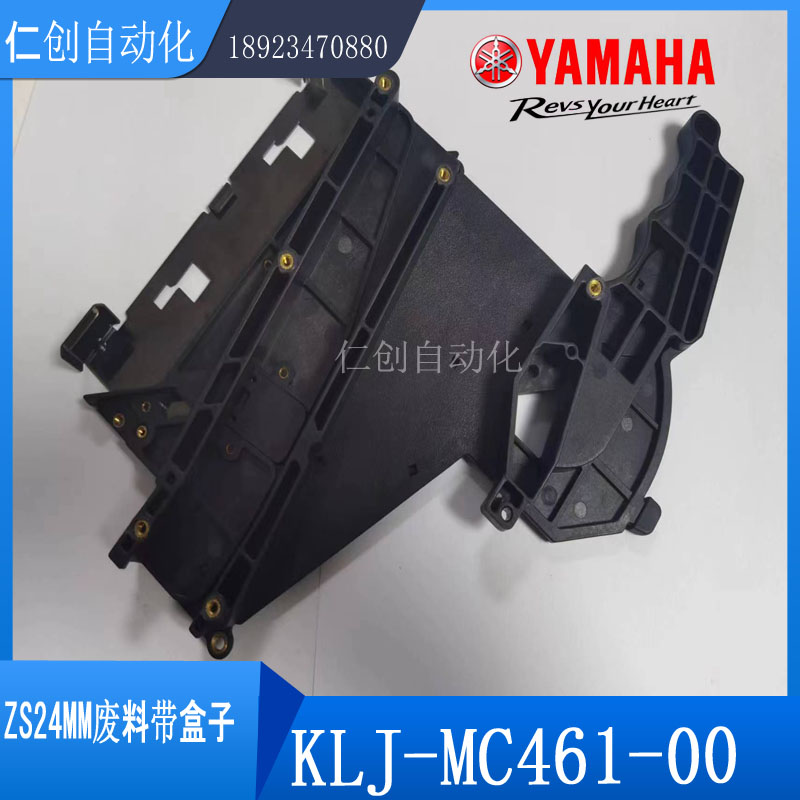

  • 产品名称:KLJ-MC461-00 雅马哈ZS24MM电动飞达配件废料带盒子组装体
  • 规  格:KLJ-MC461-00
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:
  • KLJ-MC461-00 YAMAHA ZS24MM FEEDER BOX 24MM,TOP TAPE雅马哈电动飞达配件废料带盒子组装体,更多电动飞达配件,请联系我们。



    KLJ-MC46Y-00 TOP TAPE BOX COMP. 1
    2 KLJ-MC461-00 BOX 24MM,TOP TAPE 1
    3 KHJ-MC165-00 MAGNET,TAIL 1
    4 KLJ-MC1A1-00 BOX,EL 1
    5 98502-03006 SCREW PAN HEAD 5
    1 KLJ-MC210-00 MOTOR,FEED 1
    2 KHJ-MC210-11 MOTOR,PEEL 1
    3 90990-08J021 SCREW,STAD 4
    4 90166-02JA03 SCREW,PAN HEAD 2
    5 KLJ-MC167-00 COVER,MENBRANE 1
    6 KLJ-MC2A4-00 COVER 12/24,ABS 1
    7 90115-02J003 BOLT HEX.SOCKET HEAD 2
    8 KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>
    9 KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>
    10 KLJ-MC1AA-00 SWITCH,OPERATION 1
    11 KLJ-MC1AL-00 SW,LIMIT 1
    12 KLJ-MC1AJ-00 NUT,PLATE 1
    13 KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1
    14 KHJ-M4664-11 ABS BOARD ASSY. 1
    15 KLJ-M4488-00 FEEDER BOARD ASSY. 1
    16 90166-12JA06 SCREW,PAN HEAD W/W
    KLJ-MC202-00 COVER 12/24,F.S. 1
    2 KLJ-MC131-00 SPROCKET ASSY. 1
    3 91312-03018 BOLT HEX.SOCKET HEAD 1
    4 KLJ-MC2E1-00 GEAR,IDLE F1 ASSY. 1
    5 KLJ-MC2E2-00 GEAR,IDLE F2 ASSY. 1
    6 KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1
    7 KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1
    8 KLJ-MC438-00 GEAR 24MM,DRIVEN 1
    9 KLJ-MC23G-00 SHAFT 12/24,D.G. 1
    10 KLJ-MC23A-00 SHIM 12/24,SPROCKET 1
    11 KLJ-MC4EK-00 COLLAR 24MM,D.G. 1
    12 KLJ-MC2EH-00 BEARING 6-10 3
    13 KLJ-MC2E8-00 FRANGE 12/24,WASHER 1
    14 KLJ-MC2E9-00 WAVE WASHER,D.G. 6-8 1
    15 KLJ-MC13P-00 SPACER,F3 1
    16 KHJ-MC251-00 GEAR,IDLE P1 1
    17 KHJ-MC252-00 GEAR,IDLE P2 1
    18 KHJ-MC253-00 GEAR,IDLE P3 1
    19 KHJ-MC254-00 GEAR,IDLE P4 1
    20 KHJ-MC256-00 ROLLER, PEEL OFF 1 1
    21 KHJ-MC258-01 COVER,IDLE GEAR 1 1
    22 KHJ-MC259-00 COVER,IDLE GEAR 2 1
    23 KHJ-MC45A-00 SUB-ROLLER,1 2
    24 KHJ-MC25E-00 COVER,IDLE GEAR 3 1
    25 90115-2AJ008 BOLT HEX. SOCKET HEAD 2
    26 KHJ-MC466-00 BLOCK,P/O TOOTH 1 1
    27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
    28 KHJ-MC269-00 ROLLER,P/O 2 1
    29 KHJ-MC46A-00 SHAFT,P/O LEVER 1 1
    30 90440-01J030 CIRCLIP 1
    31 90990-09J008 SCREW,FLAT HEAD 16
    32 KLJ-MC1A2-00 COVER,BOX EL
