您的位置:产品展示
 YAMAHA贴片机配件 > 吸嘴/吸嘴杆 > KHW-M7141-B0/雅马哈YG100/YG100R/YG88吸嘴杆带轴套
  • 产品编号:112416471716

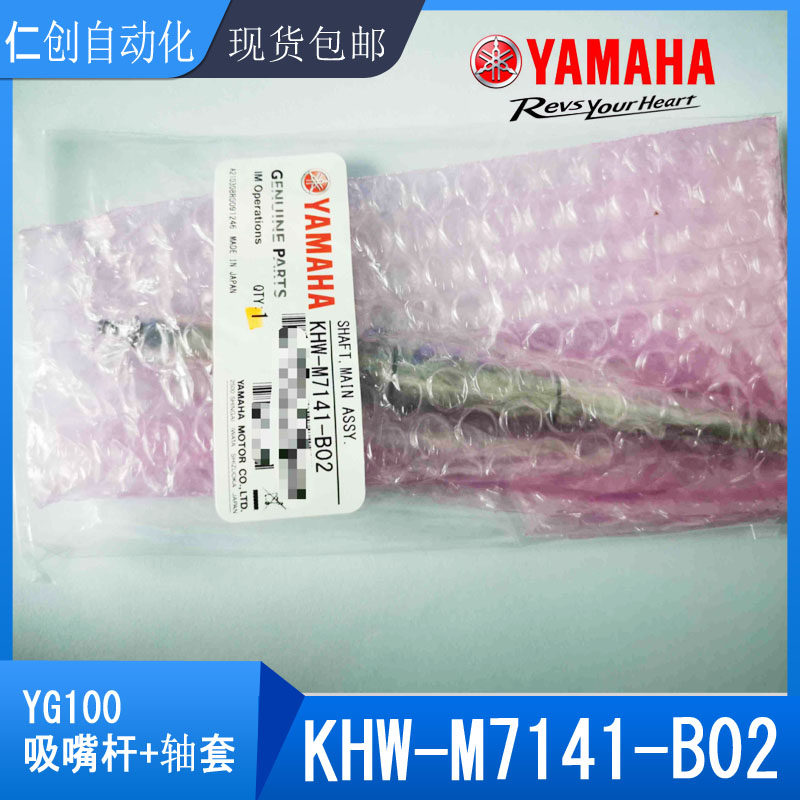

  • 产品名称:KHW-M7141-B0/雅马哈YG100/YG100R/YG88吸嘴杆带轴套
  • 规  格:KHW-M7141-B0
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:
  • KHW-M7141-B0/雅马哈YG100/YG100R/YG88吸嘴杆带轴套SHAFT/MAIN ASSY

    No
    1 MAIN, SHAFT 02X-M7141-KGS 1
    2
    8 CAGE BALL 02X-M7146-KGS 3
    .SEL 2 CAGE SHAFT 12X-M7147-KGS 4
    .SEL 2 CAGE, SHAFT 22X-M7147-KGS 5
    .SEL 2 CAGE, SHAFT 32X-M7147-KGS 6
    8 CAGE, SPACER 03X-M714V-KGS 7
    1 BEARING, HOLDER 01X-M7149-KGS 8
    1 BEARING, COLLAR 00X-M714A-KGS 9
    1 BEARING 00X-M714B-KGS 10
    1 BEARING, SLEEVE 00X-M714C-KGS 11
    1 INDEX, HOLDER 00X-M714D-KGS 12
    1 PARALLEL, PIN 00X-M714E-KGS 13
    2 CAM 00X-M714F-KGS 14
    1 LOCATE. SPG 00X-M71X1-KV8 15
    .SEL 1 1 SHAFT 10X-M71R1-KV8 16
    .SEL 1 1 SHAFT 20X-M71R1-KV8 17
    .SEL 1 1 SHAFT 30X-M71R1-KV8 18
    1 STOPPER, BLOCK 01X-M71R2-KV8 19
    2 NOZZLE, SCREW 01X-M71M6-KV7 20
    1 LOCATE, PIN 02X-M71R5-KV8 21
    1 1 GEAR-BEVEL 00X-M71RA-KGB 22
    1. ASSY 2 GEAR-BEVEL 10X-M71RB-KV8 23
    2 CAM, PIN 00X-M71RC-KV8 24
    4 CIRCLIP 10J008-90440 25
    1 WASHER 00X-M71RE-KV8 26
    1 INDEX, SEAL 00X-M71RH-KV8 27
    1 CIRCLIP 12800-99009 28
    8 HEAD SOCKET. HEX BOLT 03006-91317 29
    26 HEAD SOCKET. HEX BOLT 03008-91317 30
    3 MAIN, SHAFT 52X-M7141-KGS 31
    .SEL 6 CAGE SHAFT 12X-M7147-KGS 32
    .SEL 6 CAGE, SHAFT 22X-M7147-KGS 33
    .SEL 6 CAGE, SHAFT 32X-M7147-KGS 34
    3 STOPPER, WASHER 02X-M7148-KGS 35
    3 NOZZLE, SHAFT 03X-M714G-KGS 36
    3 NOZZLE. SPG 90X-M7106-KM1 37
    3 PIN NEEDLE 00X-M714H-KGS 38
    6 SPRING LEAF A0X-M7137-KG7 39
    6 SCREW 00X-M7169-KG7 40
    6 PLAIN WASHER 28J002-90990 41
    2 STOPPER, PLATE 00X-M7145-KGS 42
    2 SPRING, PLATE 03X-M714W-KGS 43
    1. ASSY NOZZLE A0X-M711N-KV8 44
    (nozzle circle (1. ASSY NOZZLE A0X-M712N-KV8 45
