 YAMAHA贴片机配件 > 雅马哈常用配件 > KGB-M71VC-00X YAMAHA贴片机YV100XG头部配件
  • 产品编号:9715354116
  • 产品名称:KGB-M71VC-00X YAMAHA贴片机YV100XG头部配件
  • 规  格:KGB-M71VC-00X
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:

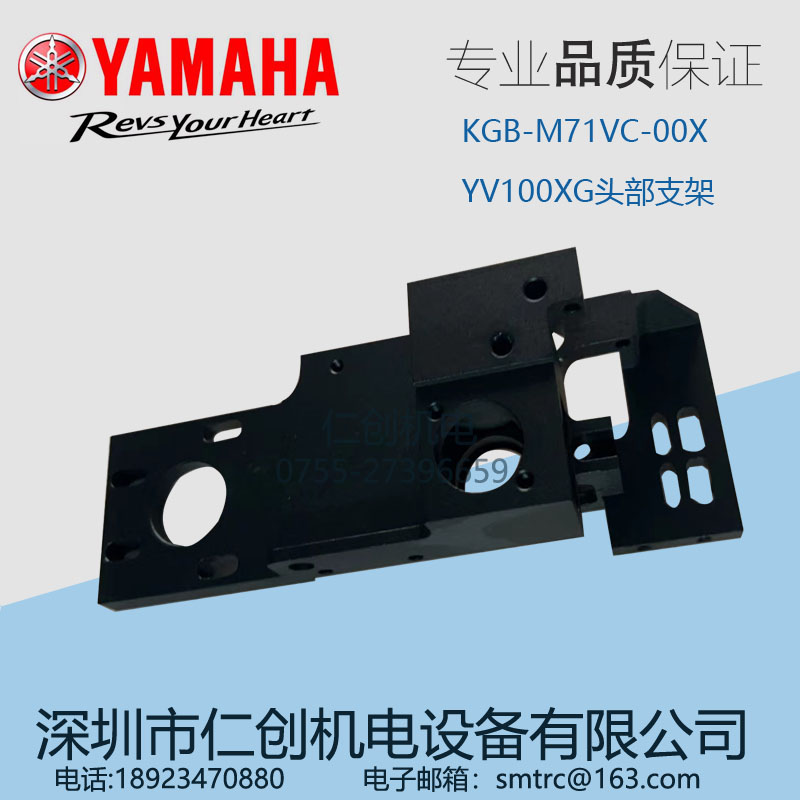

  • KGB-M71VC-00X YAMAHA贴片机YV100XG头部配件 HOLDER PULLEY

    1 KV8-M7101-00X HOUSING HEAD 1
    2 KV8-M7103-50X PLUG 4
    3 K65-M257M-00X O-RING 3 24 S12.5
    3-1 90200-01J125 O-RING 3 24 S12.5
    4 KM1-M7140-00X PACKING 16 MYR-6
    4-1 90990-22J003 PACKING 16 MYR-6
    5 KV8-M7103-10X PLUG 4
    6 KV8-M7104-00X PISTON 8
    7 KM1-M7107-00X PACKING 8 LO43165
    7-1 90990-22J006 PACKING 8 LO43165
    8 KM1-M7141-00X PACKING 16 MYA-10A
    8-1 90990-22J002 PACKING 16 MYA-10A
    9 KV8-M71RJ-00X COLLAR BRG. 8
    10 KG7-M7137-A0X LEAF SPRING 16
    11 KG7-M7169-00X SCREW 16 M2X3
    12 KG7-M7170-00X WASHER 16
    12-1 90990-28J002 WASHER PLAIN 2 2003.03.28 M330113
    13 KGB-M7184-00X BOLT,HEX. S.H 7 M3X60
    14 92A08-03303 SET SCREW 16 M3X3
    15 KV8-M71VS-00X COLLAR,SENSOR 12
    16 KGB-M7183-00X PLATE,EJECTOR 1
    17 KV8-M7109-00X COLLAR 1, HEAD 4
    18 KV8-M7110-00X COLLAR 2, HEAD 4
    19 90933-03J128 BRG. 24 MF128ZZS
    20 KGB-M7167-00X PULLEY 8
    21 KV8-M7154-00X SPG.RETURN 8
    22 KV8-M7108-00X NUT 8
    23 90933-02J604 BRG. 8 604ZZ
    24 99001-03600 CIRCLIP 8
    25 KU1-M7152-00X WASHER 1 THURUST 8
    26 KV8-M71R7-50X PLATE BEARING 4
    27 KGB-M7111-00X PULLY, POST 1
    28 KV8-M7115-00X SHAFT 1 TENSION 4
    29 KGB-M7116-00X PULLY 2 1
    30 KV8-M7117-00X BLOCK, ADJUST 1
    31 KV8-M7119-00X BLOCK, ADJUST 1
    32 KV8-M7131-00X BRACKET, Z SENSOR 1
    32-1 KV8-M7131-01X BRACKET, Z SENSOR 1 2001.01.16 M110051
    33 KV8-M7166-00X PLATE, VALVE 1
    34 KGB-M71VC-00X HOLDER PULLEY 1 2002.02 M210074
    35 92A08-04305 SET SCREW M4X5
    36 KGB-M71Y1-01X COLLAR 1 PULLEY 1
    37 99009-10800 CIRCLIP 1 ISTW-10
    38 KGB-M71Y9-50X BODY, CYLINDER 1
    39 KV8-M71YB-00X PACKING 8
    39-1 90990-22J005 PACKING 8
    40 91317-05006 BOLT HEX. SOCKET HEAD 8 2002/01/08 M210011
    41 KM1-M7105-00X PLUG 2 8
    42 KM1-M7112-01X STOPPER 1
    43 KGB-M7181-00X BELT, HEAD 2
    44 KM1-M7186-00X O-RING 8 5X1.0
    44-1 90990-17J007 O-RING 8 5X1.0
    45 KV8-M653F-A0X SENSOR 3 ASSY 4 E2S-Q22 (DOWN 1,3,5,7)
    46 KV8-M653G-A0X SENSOR 4 ASSY 4 E2S-Q22B (DOWN 2,4,6,8)
    47 KGB-M653A-00X SENSOR HEAD ASSY 3
    47-1 KGB-M653A-01X SENSOR HEAD ASSY 1 2004.03.18 M430057
    47-2 KGB-M653A-02X SENSOR HEAD ASSY 1 2005.07.21 MB70010
    48 KGB-M653F-10X SENSOR 3 ASSY 1 EE-SX872P
    49 93604-06083 PIN DOWEL 6 4X6
    49-1 90990-02J001 PIN DOWEL 4 2002.02.19 M220087
    50 99480-04008 PIN PARALLEL 8 4X8
    51 90110-03248 BOLT HEXA.S.H 7 M3X55
    51-1 91317-03055 BOLT HEX. SOCKET HEAD 3 2003.07.15 M370057
    52 92D18-02006 BOLT HEX 12 M2X0.4X6
    52-1 90115-02J008 BOLT HEX. SOCKET HEAD 12 2002.08.21 M280085
    53 $KM-05 MUFFLER 7
    54 $SLH8-01 JOINT 2
    55 $TSH6-01 JOINT 2
    56 KG2-M7181-00X PACKIN 24 MYA-4
    56-1 90990-22J001 PACKIN 24 MYA-4
    57 KV8-M7162-00X SOLENOID VALVE 1
    58 KGB-M7163-00X EJECTOR, RESIN 1
    59 KV8-M71VB-00X COVER SENSOR 1
    60 KM1-M4592-12X VAC SENSOR BOARD ASSY 8
    60-1 KM1-M4592-13X VAC SENSOR BOARD 8 2005.04.19 MB40065
    61 KGB-M7169-00X SPACER 1
    62 KGB-M7170-00X GEAR 1 1
    63 KGB-M7171-00X GEAR 2 1
    64 KGB-M7172-00X COLLAR 1, GEAR 1
    65 KGB-M7173-00X COLLAR 2, GEAR 1
    66 KGB-M7174-00X SHAFT, GEAR 1
    67 90933-02J085 BEARING 2 MR85ZZS
    68
    69
    70 KGB-M7179-00X COVER, GEAR 1
    71 KGB-M7185-00X PLATE 2, NUT 1
    72 90933-01J800 BEARING 2
    73 KGB-M712S-A0X STD. SHAFT 1, SPARE 1 SPARE PARTS
    74 KGB-M713S-A0X STD. SHAFT 2, SPARE 1 SPARE PARTS
    75 KV8-M7103-B0X PLUG ASSY 4
    76 KV8-M7103-C0X PLUG ASSY 4
    77 KV8-M7104-A0X PLUG ASSY 8
    78 KGB-M71S0-50X STD. SHAFT 3, SPARE 1 SPARE PARTS 2002.10.18 M200051
    79 KGB-M71Y9-B0X BODY BRACKET ASSY 1 2001.02.02 M110144
    80 KM1-M7105-A0X PLUG 2 ASSY 8
    81 KGB-M71VD-00X NUT GEAR 1 2004.02.03 M420001
    82 KGB-M7163-A0X EJECTOR 1 SPARE PARTS
    83 KM1-M7163-20X VALVE 1 SPARE PARTS
    84 KM1-M7163-30X VALVE 1 SPARE PARTS
    85 M46-M8527-C0X FILTER 1 SPARE PARTS 2001.02.02 M120012
    90990-17J00B O-RING 1 SPARE PARTS
    Delete (2006.12.11) MCY0027
    KM5-M7174-F0X FILTER CAP 1 SPARE PARTS 2001.02.02 M120012
    Delete (2006.12.11) MCY0027
    88 90990-17J010 O-RING 1
    89 KM5-M7174-G0X FILTER CAP 1
    90 KV8-M7162-20X VALVE 1 SPARE PARTS
    91 KV8-M7162-10X VALVE 1 SPARE PARTS
    92 91317-04030 BOLT,HEX. S.H 4 M4X30 2006.10.02 MC90097
    86
